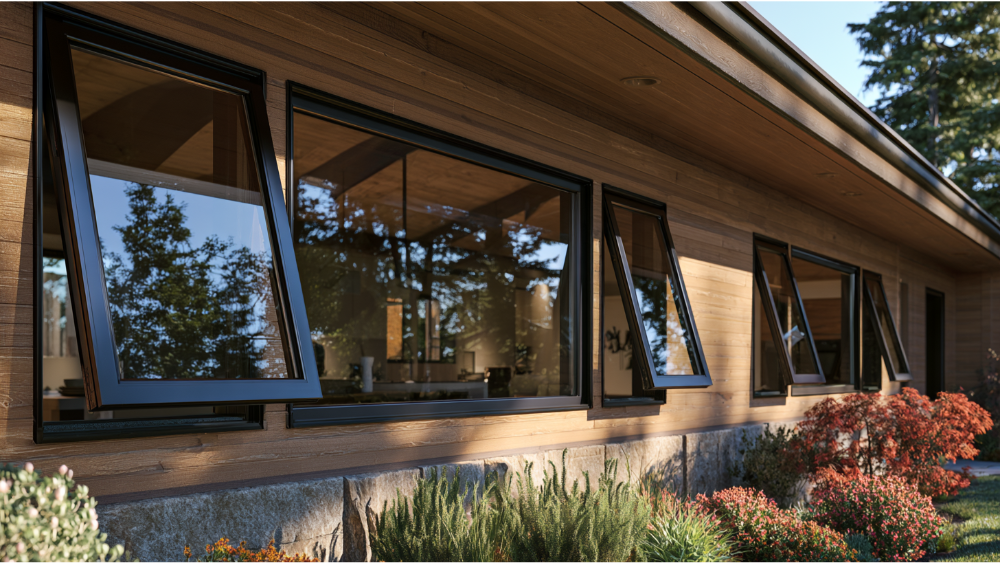

Awning Windows: Where They Work Beautifully, and Where They Cause Problems

Awning windows are hinged at the top and crank open outward from the bottom, so the sash tilts away from the house like a small canopy. That sloped opening lets daylight shine in and brings fresh air inside with some protection during light rain, which is why these windows show up in bathrooms, kitchens, and high wall placements. We mean one of the operable window styles here, not a fabric shade over a patio. Here’s how to tell whether awning windows fit your opening, and where they cause clearance, cleaning, or code problems.

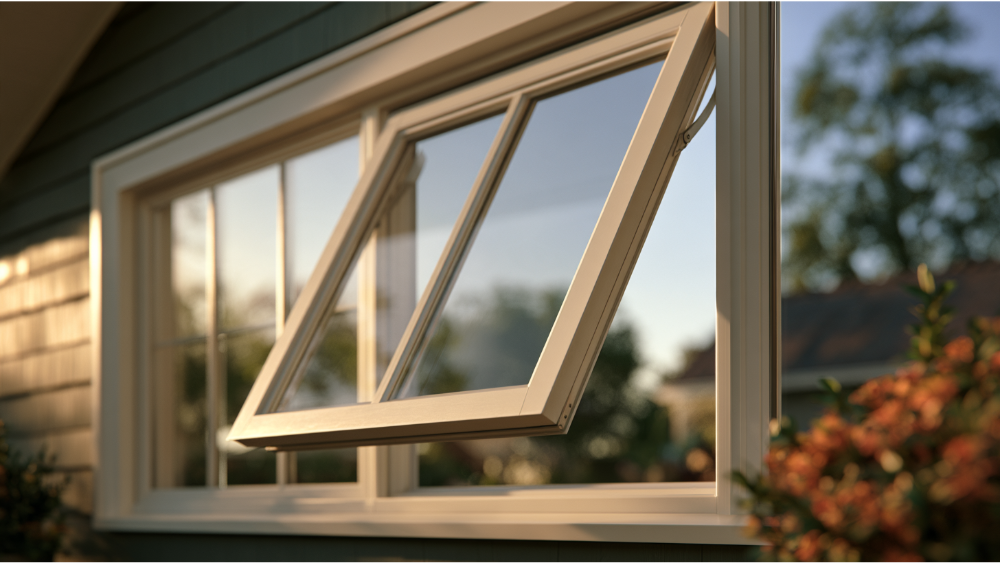

What Is an Awning Window and How Does It Work?

The mechanics are simple, which is part of the appeal:

• Hinged at the top: the sash pivots at the head of the frame and swings out at the bottom.
• Crank operator: a handle at the sill opens the sash in controlled increments.
• Compression seal: crank it shut and the sash presses tight against the weatherstripping instead of sliding past it.
• Locking hardware: a multi point locking system pulls the sash in against the frame at several places.
• Interior screens: because the sash moves outward, screens and other accessories mount on the interior side.

One term worth knowing now: net clear opening is the unobstructed opening you could pass through when the sash is wide open. That usable space matters later.

Are Awning Windows Right for Your Opening?

Strong fit when you need:

• Ventilation you can leave cracked during light rain
• Short, wide operable windows rather than tall ones
• Privacy from a higher wall placement
• Airflow above a sink, counter, tub, or fixed glass

Explore other window styles when you need:

• Maximum airflow through the opening
• Bedroom windows that may serve as emergency escape
• No exterior projection over a walkway or planting bed
• Easy exterior cleaning on a second story

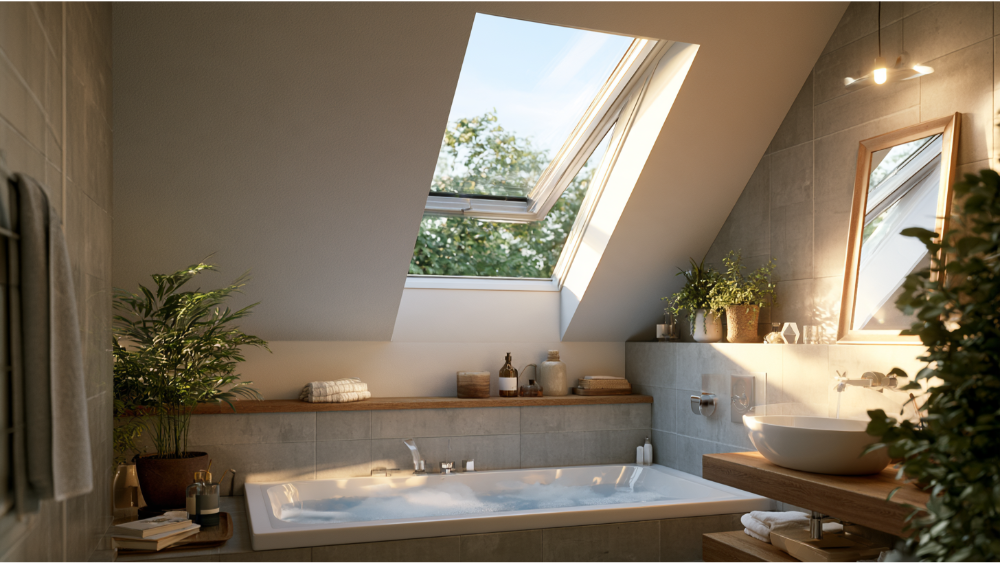

Benefits of Awning Windows

The projected sash deflects light rain while air still moves, so you can vent a bathroom mid-storm without soaking the sill. Wind pressure pushes the sash tighter into the frame rather than past a slide track. High placement gives daylight and privacy at once, and with no center meeting rail the view stays clean. Awning windows also pair well above or below a picture window when you want a big view plus real ventilation. The clean horizontal lines suit modern homes and traditional exteriors alike, which helps curb appeal without fighting your home’s aesthetics.

Disadvantages and Practical Limits

• Exterior clearance: the sash swings out over whatever sits below, so walkways, decks, and tall shrubs can block it or create a head-bump hazard.
• Wind-driven rain: the canopy effect helps in light rain, but it does not make the opening weatherproof.
• Smaller effective opening: a fully open casement usually moves more air than an awning of similar size.
• Cleaning access: reaching the exterior pane from inside works at ground level and gets awkward up high.
• Hardware wear: cranks and hinges are moving parts that need occasional cleaning and lubrication.
• Size and reach limits: maximum dimensions are manufacturer specific, and a crank above a deep counter can be hard to operate.

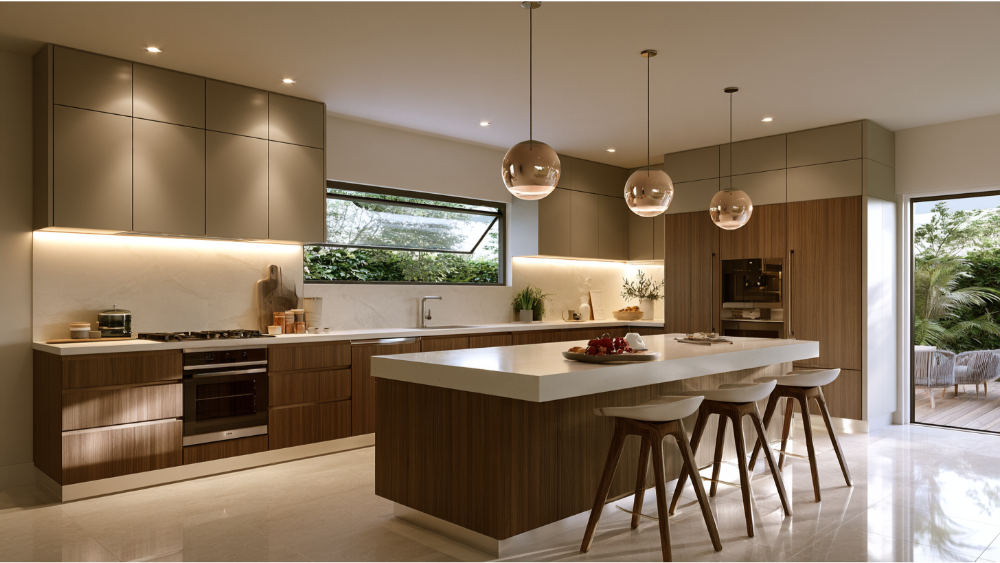

Best Windows by Room: Where Awning Windows Work

Awning vs. Casement: Which Window Style Should You Choose?

Both styles crank open and both seal by compression. The difference is the hinge. Awning windows are hinged at the top and suit short, wide openings where you want rain-friendly venting. A casement is hinged at the side, fits taller openings, swings wide, and catches side breezes, so it generally moves more air. If the opening is short, high, or weather-exposed, awning windows are the better tool.

How They Compare to Other Window Types

• Hopper: bottom-hinged and usually opens inward, so rain behavior and interior clearance differ.
• Slider: no exterior projection, but sliding windows generally have higher air leakage than compression-sealed hinged styles, per the U.S. Department of Energy.
• Picture: maximum view and daylight, no ventilation at all.

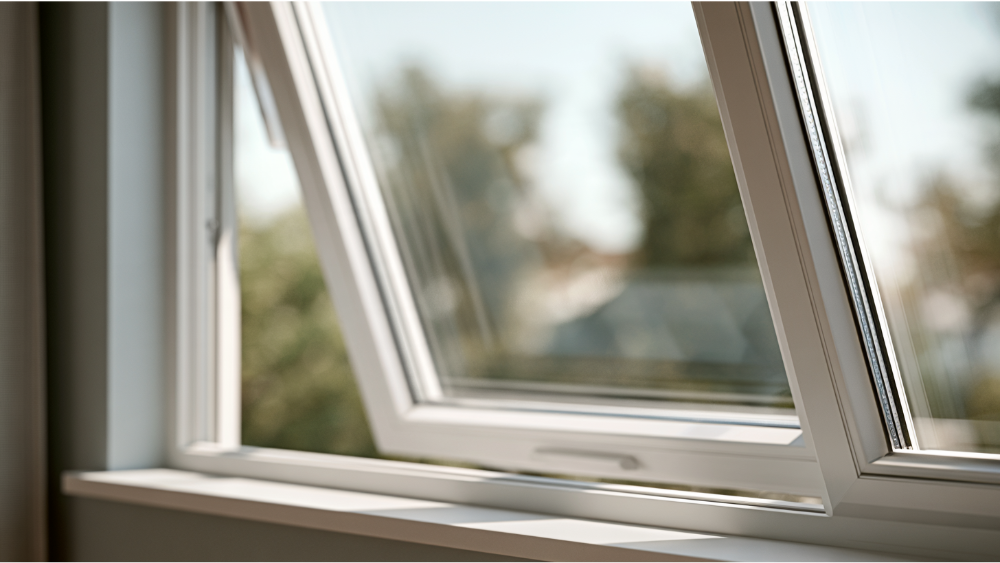

Are Awning Windows Energy Efficient?

The operating style helps. DOE notes awning and casement windows generally leak less air than sliders, since the sash presses against the frame when closed. Style is not a rating, though. Energy efficiency comes from the whole unit: frame material, the glass package including low-E coatings and argon gas fill, and the quality of the install.

Frame Materials

• Vinyl: the most common replacement frame. It insulates well, resists moisture, and needs no paint that can chip, peel, or blister.
• Fiberglass: very stable across temperature swings and paintable, though fiberglass usually costs more than vinyl.
• Wood and wood-clad: warm inside, but exterior wood needs ongoing upkeep in our summer heat.

Then read the NFRC label on the exact unit. U-factor measures heat transfer, and lower is better. SHGC measures solar heat gain, and lower is better on hot exposures. ENERGY STAR® Version 7.0, effective October 23, 2023, caps certified window air leakage at 0.3 cfm/ft², and ENERGY STAR® reports that replacing single-pane windows with certified units can cut heating and cooling bills by up to 13% on average nationwide. Those ratings also assume correct installation.

What Sacramento Homeowners Should Verify

Work through this list before you order anything:

• Title 24: California’s 2025 Building Energy Efficiency Standards apply to permit applications submitted on or after January 1, 2026.
• Climate zone: California has 16 building climate zones, and Sacramento sits in Zone 12.
• Your numbers: the 2025 single-family prescriptive package for CZ12 lists a 0.27 maximum U-factor and 0.23 SHGC, while a California Energy Commission alteration example for CZ12 uses 0.30 and 0.23. Which applies depends on your address, project type, and compliance path, so confirm with the building department.
• Permits: the City of Sacramento lists window replacement as work requiring a building permit.
• Egress in bedrooms: California emergency escape openings generally require 5.7 sq. ft. of net clear opening (5.0 at grade floor), 24 inches of clear height, 20 inches of clear width, a sill no higher than 44 inches, and operation from inside without tools. Most awning configurations miss those dimensions, so measure rather than assume.
• Bathroom safety glazing: glazing near tubs and showers is a hazardous location when the bottom edge sits under 60 inches above the standing surface, unless it is more than 60 inches horizontally from the water’s edge.
• Fall protection: an opening more than 72 inches above exterior grade with a clear opening under 24 inches above the floor may require an opening-control device.
• Pre-1978 homes: EPA’s Renovation, Repair and Painting Rule covers paid full window replacement unless components are determined lead-free.

Then there’s our heat. Sacramento’s normal July high is 94.4°F, so west-facing openings deserve lower-SHGC glass rather than the same spec as other windows in the house.

Anlin Awning Window Options We Install

We’re factory-direct with Anlin, and the awning style comes from the vinyl Coronado Series. Every unit includes crank operation, a clear view with no center meeting rail, screens, and color and grid choices. Glass options include obscure glass for privacy plus optional tempered or laminated security glass, a feature worth discussing for ground-floor rooms. Published Coronado awning configurations list U-factors of 0.25 to 0.28, SHGC of 0.11 to 0.18, and 95% to 99% UV block, so confirm the NFRC label for the exact unit ordered. Energy Star® certified and Title 24 compliant options are available.

What Affects Awning Window Replacement Cost?

We don’t publish fixed prices, because identical windows cost differently depending on the opening. The real drivers:

• Size and configuration, including combinations with picture glass
• Glass package plus tempered, obscure, or laminated upgrades
• Frame material, color, and grid patterns
• Insert versus full-frame replacement
• Story, access, and any change to the opening itself
• Permit and lead-safe requirements
• Number of windows, plus interior casing and exterior trim, stucco, or siding work

0% APR financing is available through Synchrony Bank, HERO, and Home Run Financing, with up to 25 months no-interest and 100% project financing OAC. Terms are reviewed during your free consultation. If you’d rather not talk to anyone yet, our no-obligation online window cost estimator is a simple place to begin.

What Professional Installation Should Include

1. Precise measurement of every opening
2. Code and permit review before ordering, which is essential
3. Product and glass-package confirmation
4. Flashing and water management at the opening
5. Air sealing around the frame
6. Testing crank operation, locks, and screens
7. Finish work, cleanup, final walkthrough, and warranty paperwork

Highly rated windows installed poorly won’t perform as rated. Installation is where lasting performance is won or lost.

Warranty and Support After Installation

Two separate protections, and it helps to know which is which. The Anlin Limited Double Lifetime Warranty is the manufacturer’s coverage for vinyl, glass units, hardware, screens, and accidental glass breakage, transferable per warranty terms. Our 10-year labor warranty covers workmanship: how the windows were set, sealed, and finished. Product defects go to the lifetime manufacturer coverage, and install issues come to us. After 17+ years across Northern California, our support doesn’t end when the truck pulls away.

Let’s Find the Right Window Style for Your Home

Awning windows are excellent in the right opening and the wrong answer in others. Whether you’re replacing windows, doors, or siding, we’ll measure the opening, check clearance, confirm Title 24 requirements, and match the glass to each room’s orientation. Browse our project gallery for inspiration, then Get a Free Estimate, no commitment required, or call (916) 202-2282. Our Sacramento office serves the Greater Sacramento and Bay Area.
